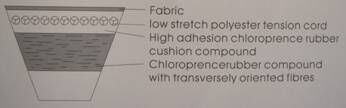

Design Features                  Application Benefit



Raw edge, moulded cogged        high power rating, small pulley diameters

Fiber filled base                          good abrasion resistance and smooth running, not affected by slip

Polyester tension cord                 excellent behavior under tension, low stretch, maintenance free

Cut Edge V-Belt





Classical V-Belt		Narrow V-Belt
DIN2215		DIN7753		USA-Standard
Section	Dimension W x H≈	Section	Dimension W x H≈	Section	Dimension W x H≈
ZX/X10	10 x 6	XPZ	9.7 x 8	3VX	9 x 8
AX/X13	13 x 8	XPA	12.7 x 10	5VX	15 x 13
BX/X17	17 x 11	XPB	16.3 x 13
CX/X22	22 x 14	XPC	22 x 18
DX/X32	32 x 20
