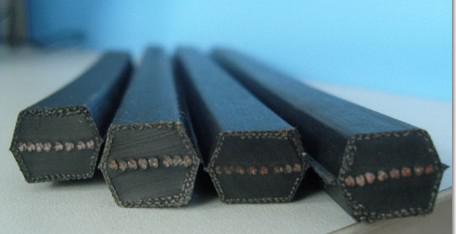

Both bottom and top faces can be used for lower transmission.
Best suited to multi pulley drive,
being highly flexible.
Heat & Oil resistant plus static conductive.
Features
Suitable for drives where belts bend both ways on several pulleys. Specially compounded base gives good flex fatigue resistance. Designed for low heat build-up to extend belt life.




Cross Section	AA/HAA	BB/HBB	CC/HCC
Top Width (mm)	13	17	22
Thickness (mm)	10	13	17
Angle (Degrees)	40°	40°	40°
Inside Length (Inch)	75 to 210	75 to 210	75 to 210
