Our company has made unremitting efforts to ensure our technological cutting edge, i.e. successfully developing new generation of strengthened-type oil proof triangular belt, which differs from the traditional technology of producing common triangular belt. It is manufactured by adopting raw edge cutting V belt. The main material is the compound rubber featuring oil proof and best heat resistance, while the framework material is made from the special hard polyester cord.
Wrapped V-Belt with Chloroprene(CR) and Nature Rubber(NR) material includes Common V-Belt (Z, A~E), Narrow V-Belt(SPZ~SPC), USA-Standard Narrow V-Belt(3V/9N, 5V/15N, 8V/25N, 3L, 4L, 5L), Hexagonal Belt(HAA, HBB, HCC, HDD, 22X22, 25X22)

Features:
1. The wrapper protects the inner layer, strong durability
2. Special core rubber used, small elongation and long service life
3. Excellent heat resistance, oil-proof and wearing resistance
4. Protect the generation of the static and keep safe use
5. Small friction coefficient and large transmission effect during operation
6. Less noise during operation

Our company has made unremitting efforts to ensure our technological cutting edge, i.e. successfully developing new generation of strengthened-type oil proof triangular belt, which differs from the traditional technology of producing common triangular belt. It is manufactured by adopting raw edge cutting V belt. The main material is the compound rubber featuring oil proof and best heat resistance, while the framework material is made from the special hard polyester cord.

Wrapped V-Belt with Chloroprene(CR) and Nature Rubber(NR) material includes Common V-Belt (Z, A~E), Narrow V-Belt(SPZ~SPC), USA-Standard Narrow V-Belt(3V/9N, 5V/15N, 8V/25N, 3L, 4L, 5L)

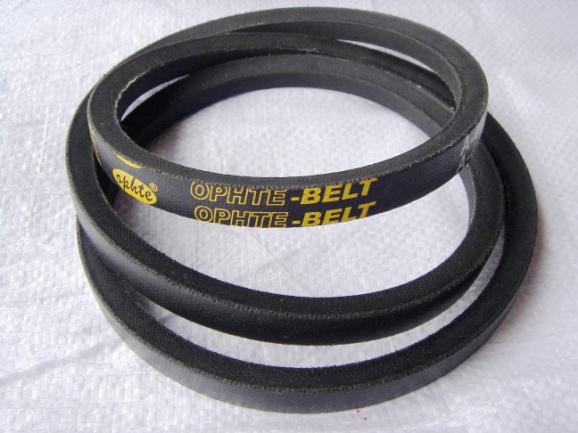

1.V-belt (Classical Wrapped V Belt)

Features:
•A multipurpose composite belt featuring anti-oil heat-resistance, ozone proof, weathering resistance
• Elastic cord can evenly distribute the load and absorbs bending stress
• Elastic concave is a patent that prolong the use life of the belt.
• It meets the requirement of anti-oil heat-resistant standards of RMA.
• It meets the requirement of Static electro conduction standard of RMA.

Materials:
• Chloroprene rubber material
• Framework of fiberglass elastic cord
•Nylon canvas tooth surface

Application: It is applied to all the industrial areas, including plane transmission.

型号
Type

顶宽 (mm)
Top width

带厚 (mm)
Hs

材质
Material

皮带长度
Length

K

8

5

橡胶
Rubber

297mm~ 16780mm

Z

10

6

A

13

8

B

17

11

C

22

14

D

32

19



2.Narrow V -belts

Features:
• The transmitted power of narrow V-belt is three times more than that transmitted by the ordinary V-belts.
• It is a multipurpose composite belt featuring anti-oil heat-resistance, ozone proof, weathering resistance
• Elastic cord can evenly distribute the load and absorbs bending pressure.
• Elastic concave is a patent that prolong the use life of the belt.
• It meets the requirement of anti-oil heat-resistant standards of RMA.
• It meets the requirement of Static electro conduction standard of RMA.

Materials:
• Chloroprene rubber material
• Framework of fiberglass elastic cord
•Nylon canvas tooth surface

Application: it is applicable to various industrial areas, especially suitable for the occasions with higher requirements on space, weight and the related power.



型号
Type

顶宽 (mm)
Top width

带厚 (mm)
Hs

材质
Material

皮带长度
Length

SPZ/3V

10

8

橡胶Rubber

630mm~ 12500mm

SPA

13

10

SPB/5V

16

13

SPC

22

18

8V

25

23



3.Wedge Raw Edge Cogged V-Belt

Features:
•Its transmission efficiency has been remarkably improved
•It also can be applied to small diameter pulley
•Ultra-soft, high-load, low elongation
•Its lifespan is prolonged by 33%
• It meets the requirement of anti-oil heat-resistant standards of RMA.
• It meets the requirement of Static electro conduction standard of RMA.

Materials:
•Chloroprene rubber material
• Polyester cord
• Raw Edge Tooth

Application: it is applicable to various industrial areas, especially suitable for the occasions with higher requirements on space, weight and the related power.



型号
Type

顶宽 (mm)
Top Width

带厚 (mm)
Hs

材质
Material

皮带长度
Length

XPZ/3VX

10

8

橡胶
Rubber

560mm~ 4750mm

XPA

13

10

XPB/5VX

16

13

XPC

22

18
